A High-Performance, Reliable Power Solution for Demanding Motor Drive Applications

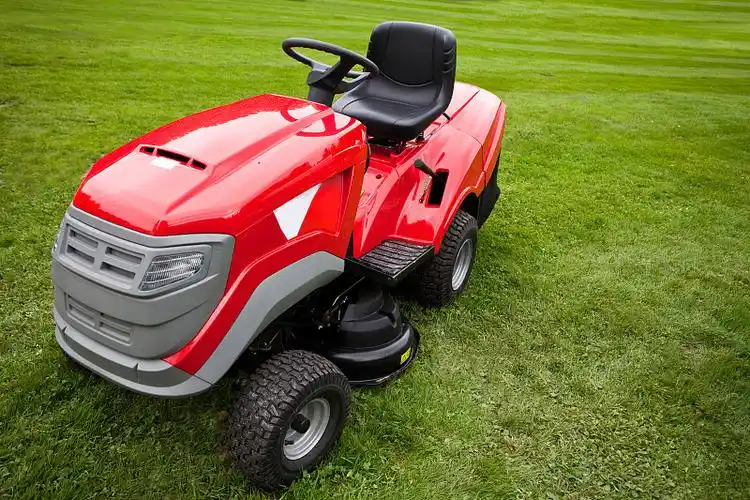

As the demand for efficient and eco-friendly gardening grows, electric lawn mowers are becoming increasingly popular. At the heart of these machines lies the motor drive system, which places stringent requirements on power devices: the ability to withstand high voltages and current surges, deliver ultra-low conduction losses for extended runtime, and maintain reliable operation under heat, vibration, and other harsh outdoor conditions.
Din-Tek Semiconductor’s DTK046N15 N-Channel Power MOSFET is engineered to meet these challenges. With proven success in high-performance lawn mower applications, it stands out as the ideal choice for manufacturers seeking superior efficiency and reliability.
Why Choose DTK046N15 for Lawn Mower Motor Drives?
Unleash Strong Power for Heavy Loads
Ultra-high current capability: Continuous drain current up to 176A at 25°C, with pulsed current handling up to 705A. This ensures reliable motor drive performance even in dense grass or under sudden load spikes, avoiding power drops or stalling.
150V drain-source voltage (Vdss): Provides ample safety margin to absorb voltage spikes and surges during operation, protecting the system from damage.
Maximum Efficiency, Extended Runtime
Ultra-low Rds(on): 3.6mΩ (typ.) at Vgs = 10V (max. 4.6mΩ). This minimizes conduction losses, translating directly into longer runtime per charge or reduced battery size, improving overall energy efficiency.
Outstanding Switching Performance
Optimized gate charge (Qg = 94nC) and low gate resistance (Rg ≈ 2.4Ω) enable fast, efficient switching (td(on) = 20ns, tr = 41ns, td(off) = 58ns, tf = 44ns). This ensures precise motor control, reduces switching losses, and further enhances system efficiency.
Rugged Reliability for Harsh Environments
Wide junction temperature range up to 175°C: Stable performance even in hot summer conditions or thermally constrained designs.
Excellent thermal handling: TO-263 (D²PAK) package provides an efficient heat dissipation path, with maximum power dissipation up to 333W at 25°C.
100% tested for gate resistance (Rg) and unclamped inductive switching (UIS): Ensures device robustness under abnormal operating conditions.
High reliability standards: RoHS-compliant, eco-friendly molding compound, and UL 94V-0 flammability rating for safety assurance.
Mature, Easy-to-Use Package
Standard TO-263 package: Widely adopted in the industry, simplifying PCB design, soldering, and heatsink integration while lowering manufacturing cost.
Value in Lawn Mower Applications
Integrating the DTK046N15 into motor drive circuits such as H-bridge or three-phase inverters brings significant benefits:
- Stronger power output – effortlessly drives high-torque motors for cutting dense grass.
- Longer runtime – reduced conduction and switching losses extend battery life.
- Higher system efficiency – less wasted energy, lower heat rise, better overall performance.
- Improved reliability – withstanding high current surges, temperature, and voltage stress for extended product lifetime.
- Better user experience – consistent cutting power for smoother, more efficient mowing.
Conclusion
With 150V voltage rating, 176A high current capability, ultra-low 3.6mΩ Rds(on), and superior switching and reliability characteristics, the Din-Tek DTK046N15 MOSFET is perfectly tailored for modern lawn mower motor drives. Choosing DTK046N15 means choosing a powerful, efficient, and durable heart for your lawn mower—helping your products stand out in a competitive market.
